- ➤ Used BUCK TBFZ 1600 - Drill For Sale | gindumac.com

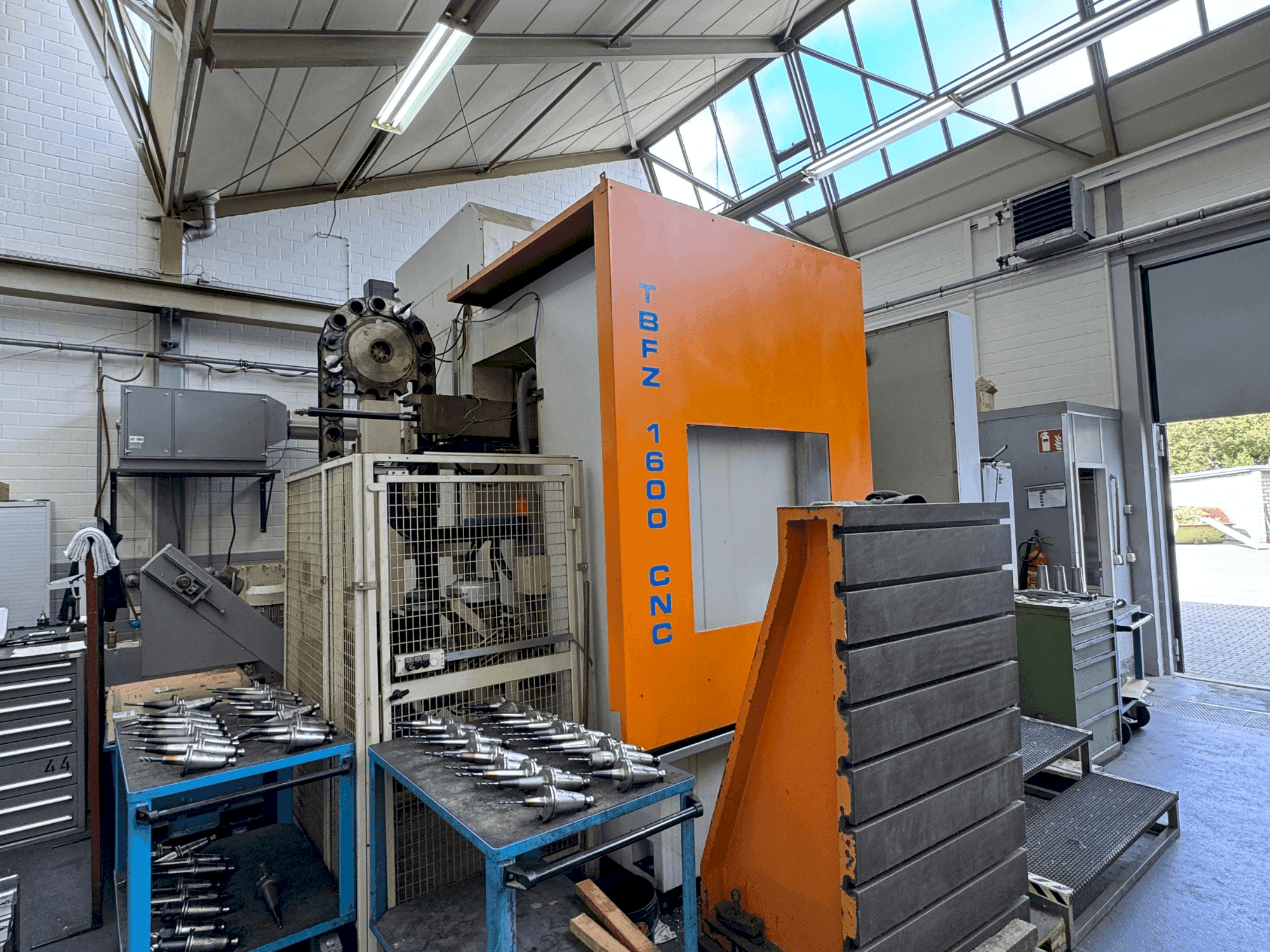

This 3-axis BUCK TBFZ 1600 drilling machine was manufactured in 2003. It features a robust table size of 1500x1500 mm, capable of handling loads up to 10,000 kg. The spindle supports SK 50 tool shanks and operates with a motor power of 30 kW, achieving speeds up to 10,000 rpm. Ideal for heavy-duty drilling, this machine offers a comprehensive range of motion with X, Y, Z, and W axes travel paths and a B-axis rotary table. Contact us for more information.
Overview
- brand: BUCK
- year: 2003
- MODEL: TBFZ 1600
- application type: Other Machine Tools
- Location: Germany
- machine type: Drilling Machine (Metal)
Technical Information - BUCK TBFZ 1600
Dimensions
- Table Load: 10000 kg
Movement
- X-axis Travel: 1600 mm
- Y-axis Travel: 1200 mm
- Z-axis Travel: 500 mm
Technical Specification
- Spindle Speed: 10000 RPM
Additional Information
Table size (ixb): 1500x1500 mm
Slots (t-slot): 5x din 650-22 h12, 150 mm spacing
Tool clamping: hydraulic
Electrical connection: 400 v, 50 hz
Compressed air connection: nominal flow rate 7000 rpm, operating pressure: 6 bar
Botek Driller optional available
Feed Drive: Brushless AC servo motors
Feed Rate: 0-20000 mm/min
Rapid Traverse: X 20000 mm/min, Y+Z 20000 mm/min
Manual Mode: 20000 mm/min
Setup Mode: 0-2000 mm/min
B-Axis: 360° (rotary table)
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
