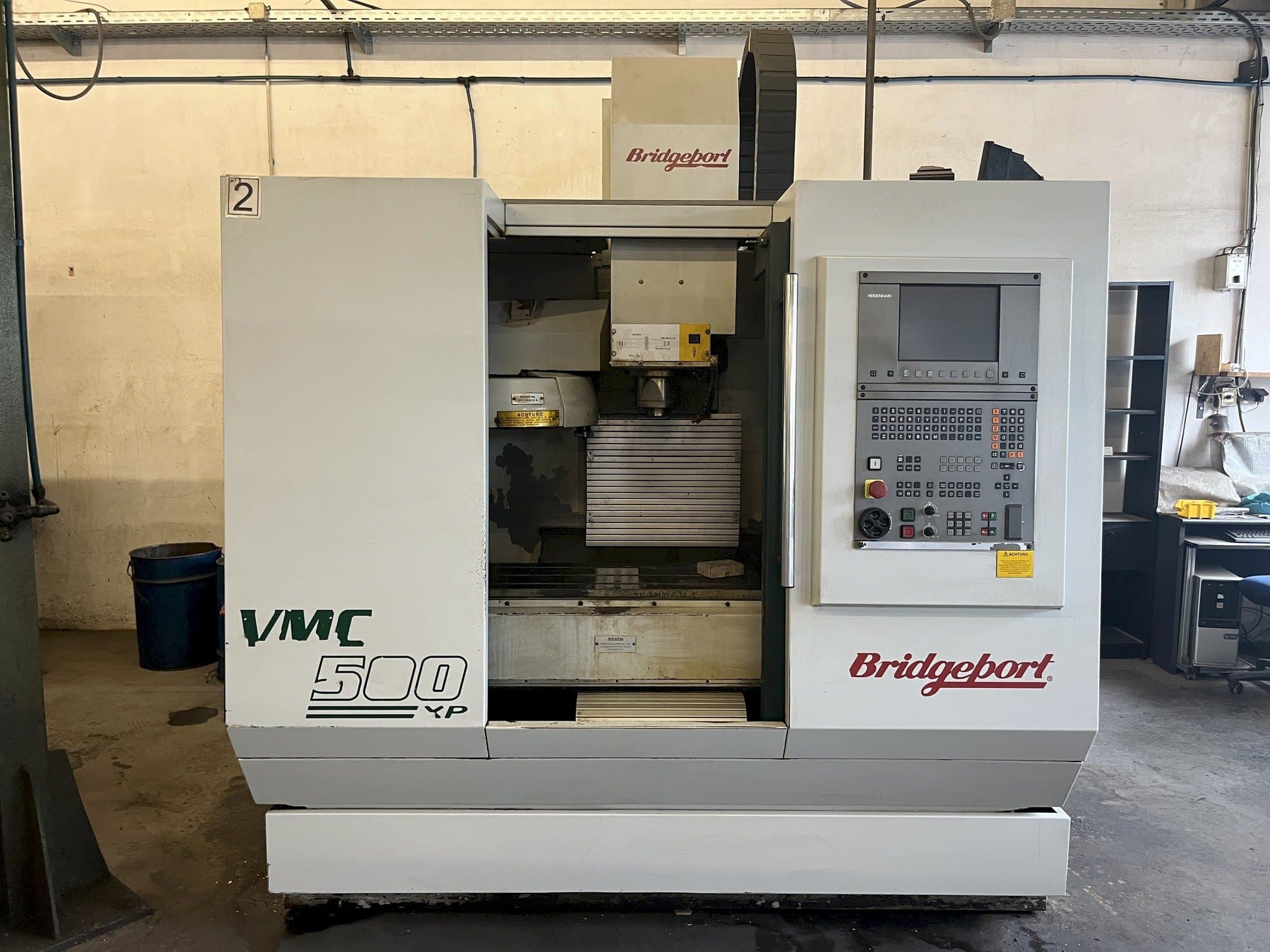

Front view of Bridgeport VMC500XP machine

Thank you for your visit

This machine was recently sold. Take a look at similar options or get in touch with us directly.

Browse all similar machines

Browse similar machines

Bridgeport VMC500XP

Bridgeport - VMC500XPDE-MIL-BRI-2001-00001

Sold

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Machine Tools
Bridgeport VMC500XP Vertical Machine Center

Show in original language

This Bridgeport VMC500XP Vertical Machine Center was made in the year 2001 in the United Kingdom. It is equipped with a Heidenhain TNC 410 M control unit. The machine has a spindle speed of 40 - 7000 rpm. Milling, drilling, boring, countersinking, reaming, threading, and for 3D machining.

Overview

brand: Bridgeport
year: 2001
MODEL: VMC500XP
application type: Milling
Location: Germany
machine type: Vertical Machining Centre
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Bridgeport VMC500XP

Control Unit

Model: TNC 410M
Brand: HEIDENHAIN

Main drive

Spindle speed range: 40 - 7000 1/MIN
Spindle motor power: 10 kW/400/oED

Movement

X-AXIS Movement: 500 mm
X-AXIS Rapid traverse: 32 m/min
Y-AXIS Movement: 340 mm
Y-AXIS Rapid traverse: 20 m/min
Z-AXIS Movement: 520 mm
Z-AXIS Rapid traverse: 20 m/min

Table

Outer length: 840 mm
Outer width: 360 mm

Tools

Type of tool holder: sk40

Additional Information

Machine Benefits

Technical Machine Benefits:
- - With tool changer for 18 tools as well as standard equipment and cnc control
- - Rigid tapping (synchronized tapping)
- - Automatic tool changer
- - High dynamic digital drives
- - High-load profiled feeders in the x/v axis precision flat feeders in the z axis
- - Acceleration: 4. 6 m/s2
- - Comfortable equipment
- - Central control panel for machine and cnc control
- - Electronic handwheel, switchable for x, y,z axis
- - Working area full protection electrically secured
Qualitative Machine Benefits:
- - Working area low voltage light
- - Coolant system with high delivery rate
- - Two-color painting, light gray/moss green ral 7035/6005
- - Pre- and fine-fiiter system, 25 µ

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
