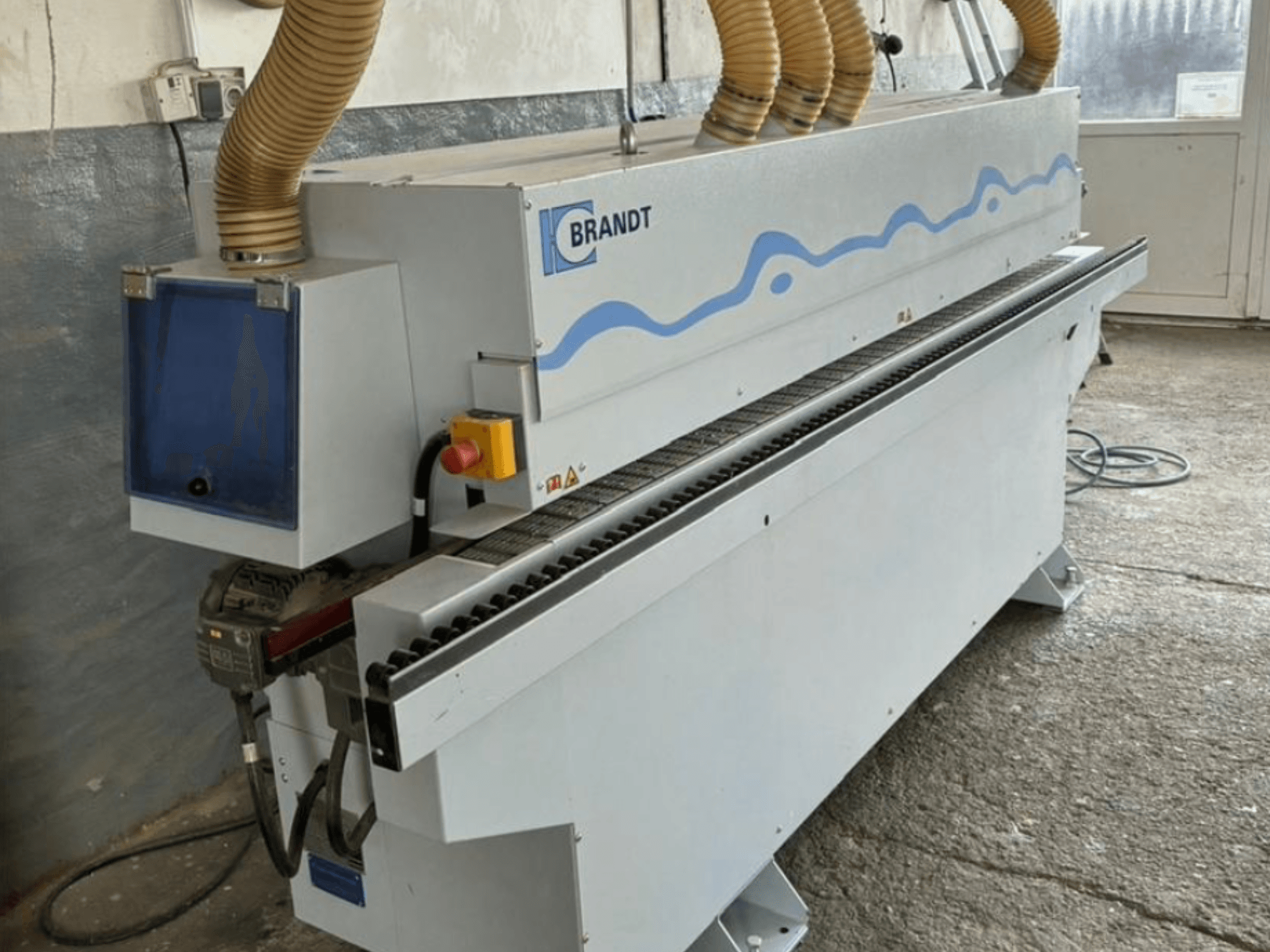

BRANDT - Kantenanleimmaschine Ambition 1110 KDF 110DE-EDG-BRA-2016-00001

Machine type: Single-sided edge banding machine for straight workpiece edges

Feed speed: 8 m/min

Working height: 950 mm

Workpiece and edge parameters

• Workpiece thickness: 8–40 mm

• Workpiece width: min 70 mm (thickness 8–22 mm) or 120 mm (thickness 23–40 mm)

• Edge material (rolls): 0.4–3 mm

• Edge material (strips): 0.4–3 mm

• Max. edge height: workpiece height + 5 mm

Processing units (aggregates)

• Joint trimming unit: 2 x 0.75 kW, 200 Hz motors (one climb-milling, one counter-milling) with diamond cutters

• Gluing unit (A3): Quick-change application unit; electronic thermostat for temperature monitoring

• End trimming unit: 2 x 0.18 kW, 200 Hz motors for front/rear edge overhang trimming

• Flush/radius trimming unit: 2 x 0.27 kW motors, manually adjustable between flush, radius, and chamfer

• Profile scraper: For rounding or chamfering pre-milled PVC edges (max 3 mm)

• Glue joint scraper: Removes adhesive residue in glue joint area

Control and electrical

• Control unit: EASY CONTROL EC 10+ with 7" widescreen touchscreen

• Program memory: Up to 20 processing programs

• Supply voltage: 400 V / 3 Ph / 50 Hz

• Full load current: 15.0 A

• Pneumatics: Min. 6 bar

Operation and maintenance

• Adjustments: Manual adjustment of units (pressure beam, trimming, pressure zone) with digital mechanical counters

• Lubrication: Manual central lubrication for the transport chain (standard)

• Safety: CE-conform; dust-tested (TRK max. 2 mg/m³)
