BOSCHERT - Multipunch 1500 x 3000HU-PUN-BOS-2011-00001

Name: BOSCHERT Multipunch 1500 x 3000
Brand: BOSCHERT
SKU: HU-PUN-BOS-2011-00001
Price: 44300 GBP
Availability: InStock

£ 44,300

gindumac price

(Ex works)

get an official quote

Visit the machine

make a counteroffer

Download PDF

Do you have further questions? Contact us.

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

Click to chat on WhatsApp

GINDUMAC
Products
Sheet Metal Machinery
➤ Used BOSCHERT Multipunch 1500 x 3000 | Punching Machine

Show in original language

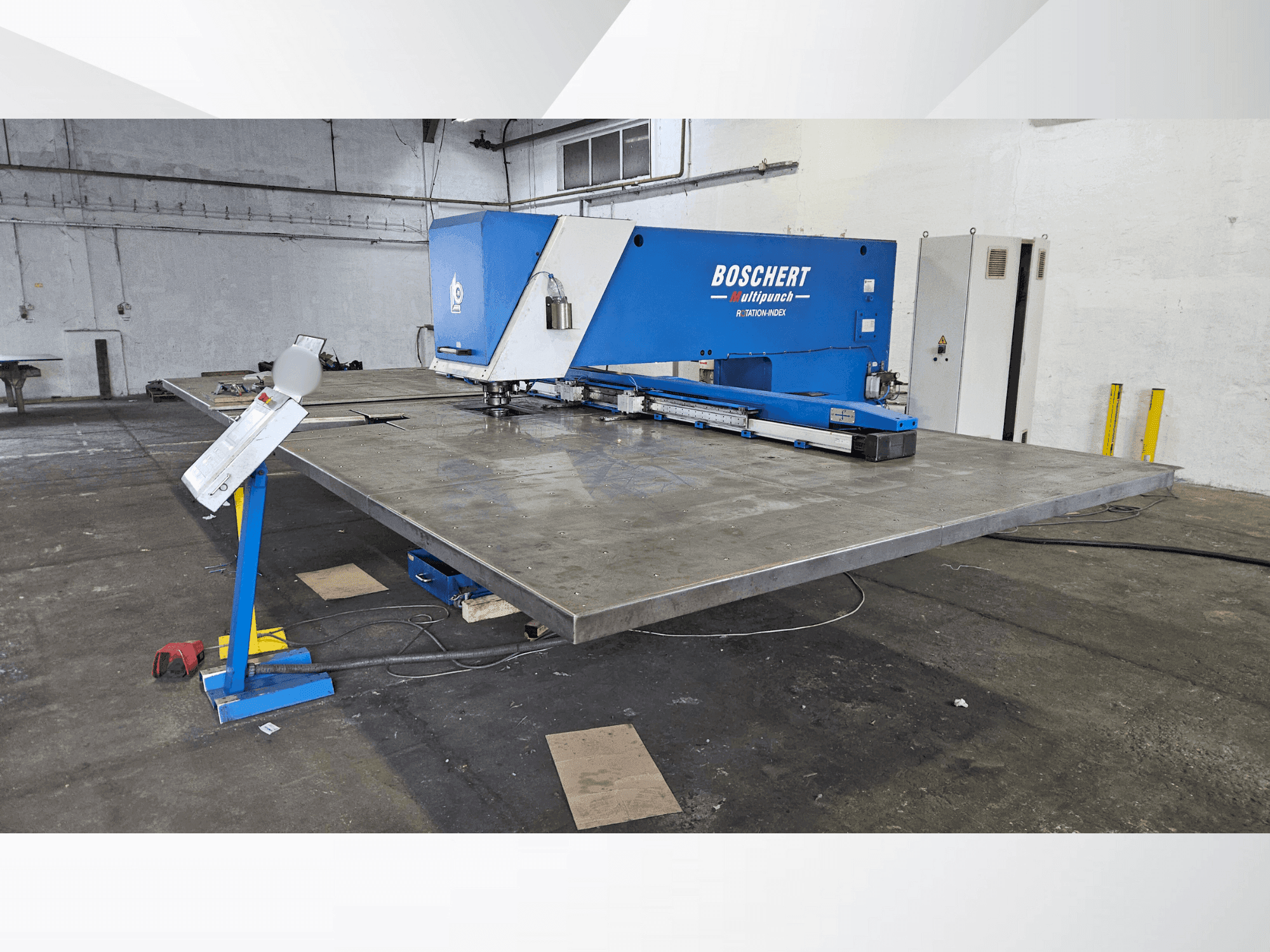

This BOSCHERT Multipunch 1500 x 3000 was manufactured in 2011. A robust CNC punching machine, it offers precision and efficiency for your sheet metal operations. Ideal for a variety of punching applications, ensuring consistent performance. Contact us for more information.

Overview

brand: BOSCHERT
year: 2011
MODEL: Multipunch 1500 x 3000
application type: Punching
Location: Hungary
machine type: CNC Punching Machine
control unit brand: BOSCHERT

Technical Information - BOSCHERT Multipunch 1500 x 3000

General Data

Measurements width: 4413 MM
Measurements depth: 5860 MM
Measurements height: 2263 MM
Machine weight: 14500 KG

Control Unit

Brand: BOSCHERT

Main drive

Maximum sheet thickness: 6 mm

Movement

X-AXIS Movement: 3430 mm
Y-AXIS Movement: 2670 mm
Z-AXIS Movement: 1500 mm

Additional Information

Additional equipment

8 Station Automatic Tool Change tooling, system TRUMPF
Rotation with stepless Index (360°) of all tools
Up to 64 Tools available (with Revotools)
Very short time for tool change
All standard Trumpf tools may be used
Clamp system for automatic material handling with 2 clamps
Stepless programmable clamp positioning
Automatic repositioning of the clamps with 2 sheet hold downs for sheets up to 9999 mm

Machine Benefits

Qualitative Machine Benefits

The following retrofit has been done in the machine:
Replacement of the x-axis linear bearing
Replacement of the labod controller
Replacement of the festo pneumatic cylinder
Replacement of the pneumatic hoses
Replacement of the gripper clip

Technical Machine Benefits

Axial motion: x: 0 - 2580 mm y: 0 - 1310 mm
Max. Positioning speed: 60 m/min
Adjustable positioning speed
Positioning accuracy of the stops: 0. 1 mm
Y-axis with 2 ballscrew driven guide carriages left and right next to the machine table
X-axis with ballscrew and 4 recirculating ball carriages

Extra Information

The machine is still under power

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
