Bokö WF3 Milling Machine

Show in original language

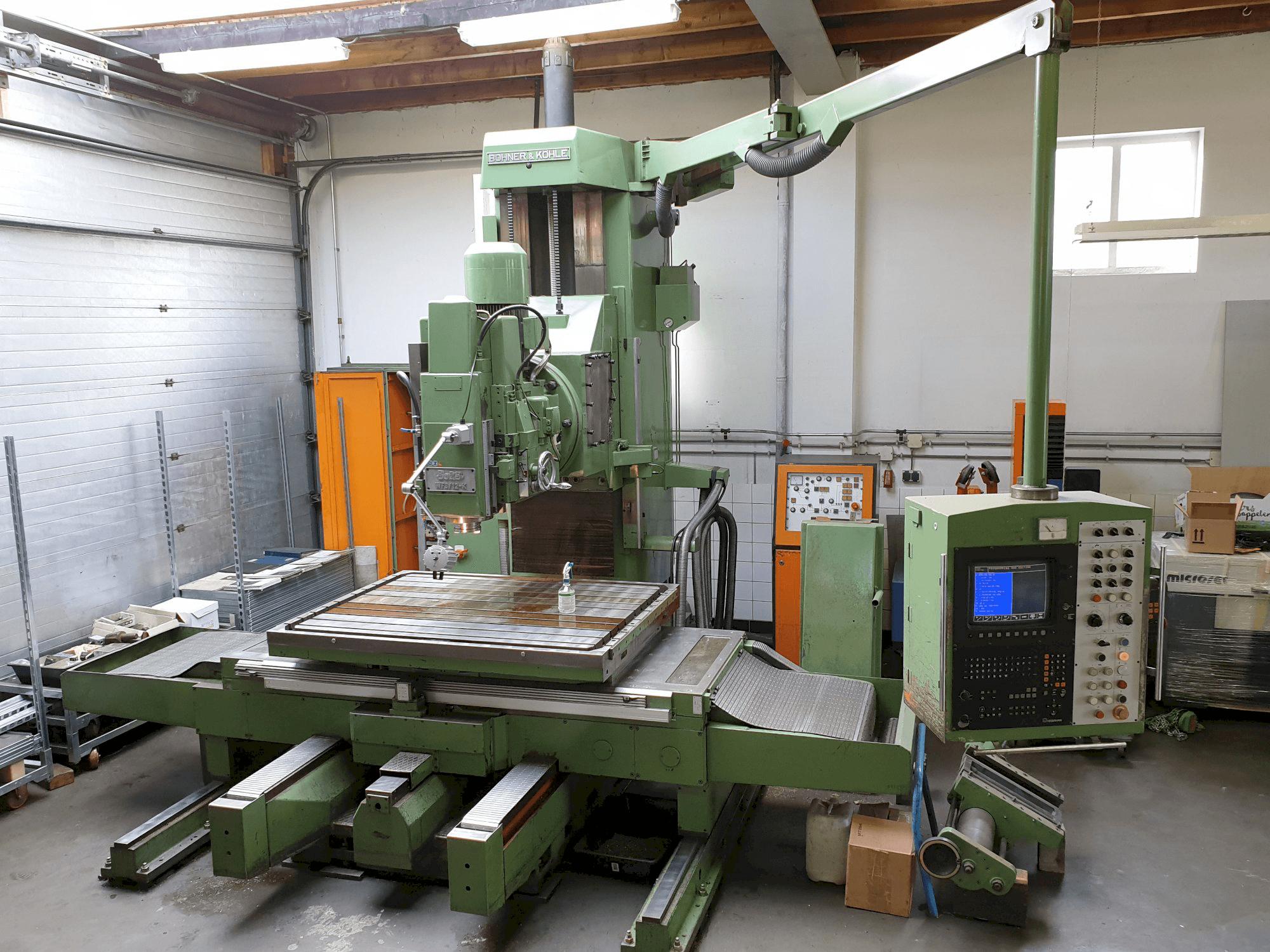

This Bokö WF3 Milling Machine was manufactured in 1989 in Germany and has a production record of only 3900 working hours since then. Operated through a HEIDENHAIN TNC 415 Control unit, this universal vertical boring and milling machine counts with 6 axis. It stands out due to its strong performance in no downtime; and for being a single column machine with large longitudinal, cross and vertical traverses. During the past, it has mainly worked with steel, stainless steel and aluminium up to 12mm of thickness for the automotive industry. It presents very good conditions and maintenance.

Overview

brand: Bokö
year: 1989
MODEL: WF3
production hours: 3900
application type: Milling
Location: Netherlands
machine type: CNC Milling Machine
availability: Sold
control unit brand: HEIDENHAIN

Technical Information - Bokö WF3

General Data

Measurements width: 2530 mm
Measurements depth: 3850 mm
Measurements height: 3500 mm
Machine weight: 19000 kg

Control Unit

Model: TNC 415
CNC main language: English
CNC language customizable: Yes
Brand: HEIDENHAIN

Main drive

Number of spindles: 1

Movement

X-AXIS Movement: 1800 mm
Y-AXIS Movement: 1200 mm
Z-AXIS Movement: 860 mm
B-AXIS Movement: 90° MM
C-AXIS Movement: 360° MM

Table

Outer length: 800 mm
Outer width: 450 mm
Number of tslots: 1
Distance between: 10 x 18 mm

Tools

Slots in storage: 1
Max weight: 15 kg
Max tool diameter: 100 mm

Media

Main electronic connection: 380 V

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
