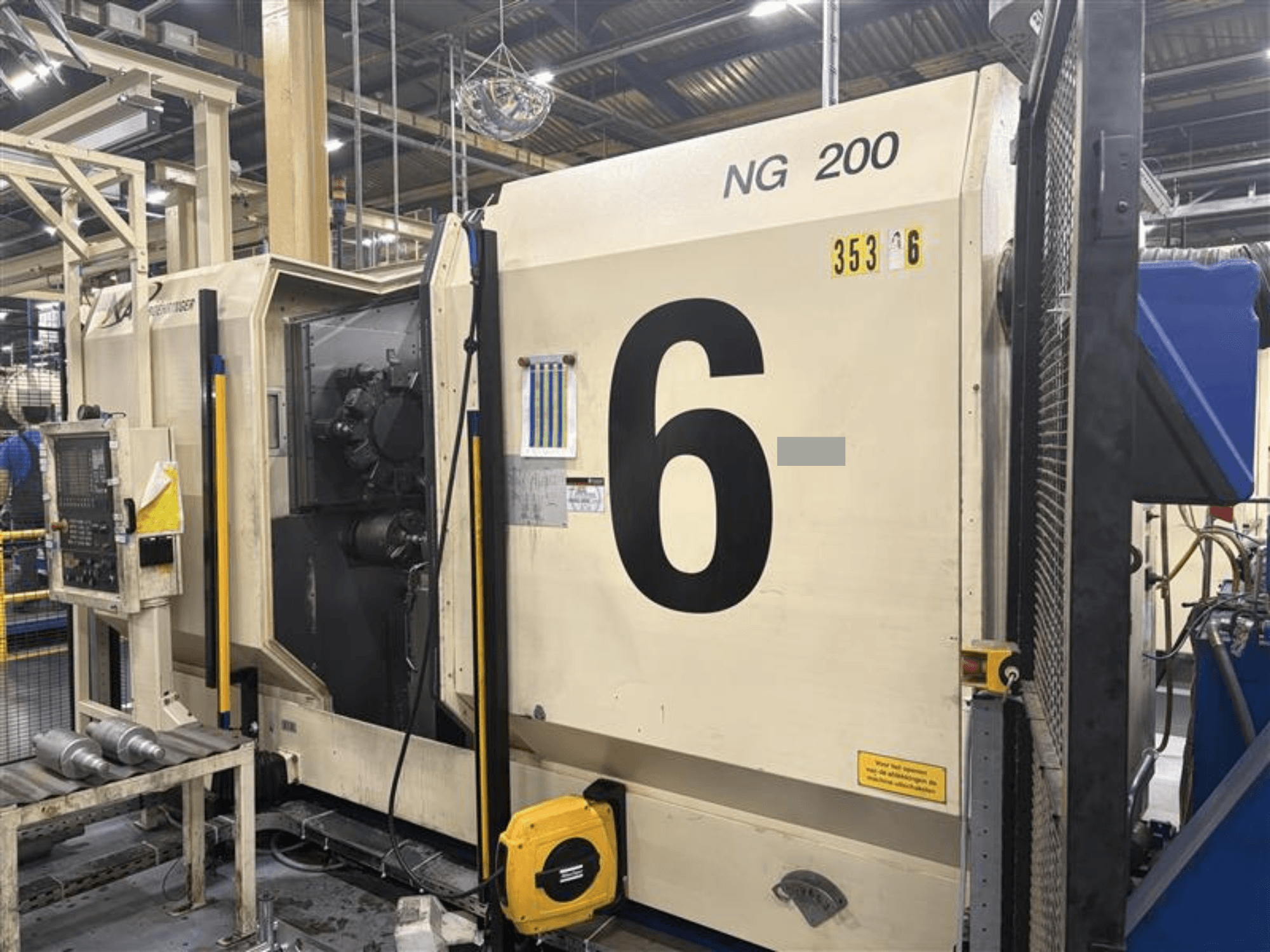

Front view of BOEHRINGER NG-200 horizontal turning machine with large numbers and control panel visible, in a factory setting.
Front view of BOEHRINGER NG-200 horizontal turning machine with large numbers and control panel visible, in a factory setting.

BOEHRINGER - NG-200BE-TUR-BOE-2008-00002

£ 25,921
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Sergi Guardia

+49 162 4027635

s.guardia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 4-axis BOEHRINGER NG-200 horizontal turning machine was manufactured in 2008. It features a maximum speed of 4500 rpm and a swing diameter of 290 mm. The machine is equipped with two turrets, each capable of holding 12 tools, providing versatility for various turning applications. If you are looking to get high-quality turning capabilities, consider the BOEHRINGER NG-200 machine we have for sale. Contact us for further details.

Overview

  • brand: BOEHRINGER
  • year: 2008
  • MODEL: NG-200
  • application type: Turning
  • Location: Belgium
  • machine type: Horizontal Turning Machine
  • control unit brand: SIEMENS

Technical Information - BOEHRINGER NG-200

Control Unit

  • Control Brand: SIEMENS
  • Control Model: Sinumerik 840D

Movement

  • Number of Axes: 4
  • X-axis Travel: 220 mm
  • Z-axis Travel: 950 mm

Technical Specification

  • Counter Spindle: Yes
  • Driven Tools: Yes
  • Spindle Power: 72 kW
  • Spindle Speed: 4500 RPM

Additional Information

  • Machine configuration: 2 turrets at the top (boven 2 revolvers)

  • Drive power (100% ID): 60 kW (2 × 30 kW with counter spindle)

  • Drive power (40% ID): 72 kW (2 × 36 kW with counter spindle)

  • Drive torque (100% ID): 300 Nm (2 × 200 Nm with counter spindle)

  • Drive torque (40% ID): 360 Nm (2 × 240 Nm with counter spindle)

  • Spindle bore: 65 mm

  • Spindle diameter (front bearing): 120 mm

  • Spindle nose (DIN 55026): A6

  • Chuck diameter: 200–250 mm

  • Swing diameter: 290 mm

  • Resolution Z-axis: 40 nm (2 nm interpolated)

  • Rapid traverse speed Z: 25 m/min

  • Max. feed force Z: 8,000 N

  • Distance between main and counter spindle: max. 1034 mm

  • Max. torque C-axis (left/counter spindle): 200 Nm

  • Max. speed C-axis (left/counter spindle): 300 rpm

  • Input fineness C-axis: 0.001°

  • Number of tools per turret: 12

  • Max. driven tools per turret: 12

  • Drive power driven tools (100% ID): 5 kW

  • Drive torque driven tools (100% ID): 20 Nm

  • Speed range driven tools: 1–4000 rpm

  • Coolant pump capacity (machine with two turrets): 80 l/min

  • Hydraulic pump capacity (machine with two turrets): 19 l/min

  • Electrical connection load (machine with counter spindle): 85 kVA

  • Control unit: Height-adjustable operating panel with 10.4" TFT display

  • Controller: Siemens Sinumerik 840 D

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
