Biglia Smart S Lathe

Show in original language

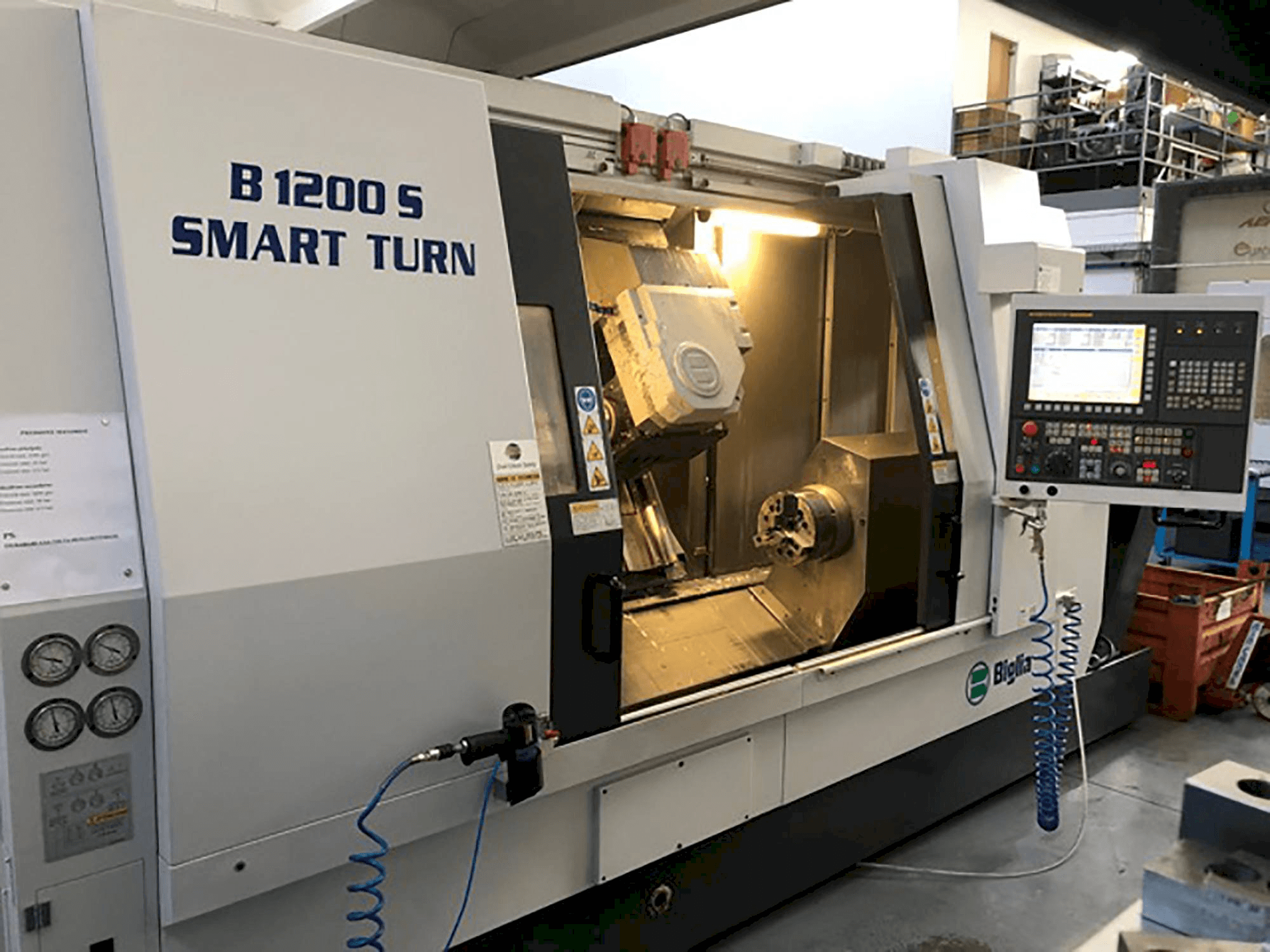

This Biglia Smart S Lathe was manufactured in Italy in the year 2016. It is operated through a FANUC Series31I-B5 control unit. This machine can work with a spindle speed up to 3000 rpm. It includes a smoke aspirator for wet working, an oil separator, a gun for washing machine, and other accessories.

Overview

brand: Biglia
year: 2016
MODEL: Smart S
production hours: 1700
application type: Turning
Location: Italy
machine type: Turn-Mill Centre
control unit brand: FANUC

Technical Information - Biglia Smart S

General Data

Measurements width: 5890 mm
Measurements depth: 2274 mm
Measurements height: 2574 mm
Machine weight: 9200 kg

Control Unit

Model: Series 31I-B5 control
Brand: FANUC

Main drive

Spindle speed range: 3000 1/MIN

Movement

X-AXIS Movement: 515 mm
Y-AXIS Movement: 210 mm
Z-AXIS Movement: 1280 mm
W-Axis Movement: 1130 mm

Media

Main electronic connection: 400 V 50Hz

Additional Equipment

- Smoke aspirator for wet working
- Oil separator
- Gun for washing machine
- Prearrangement for working from bar
- Footswitch for opening / closing control with centre of gravity on counter-head
- SBS for tool effort monitoring
- Self-centering main spindle SHUNK diameter 315
- Self-centering SHUNK counter-head chuck, diameter 250

Additional Information

Machine Benefits

Technical Machine Benefits:
- - Max. Turning dia. Mm. 500
- - Max. Rotating dia. (on main spindle) mm. 700
- - Max. Rotating dia. (on counterhead) mm. 600
- - Max. Dia. Rotating on the carriage "x" mm. 580
- - Max. Turning dia. From bar mm. 101
- - Hsk 63 connection
- - Tool changer 40 positions

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
