- ➤ Used Axial PHS-W-124 For Sale | gindumac.com

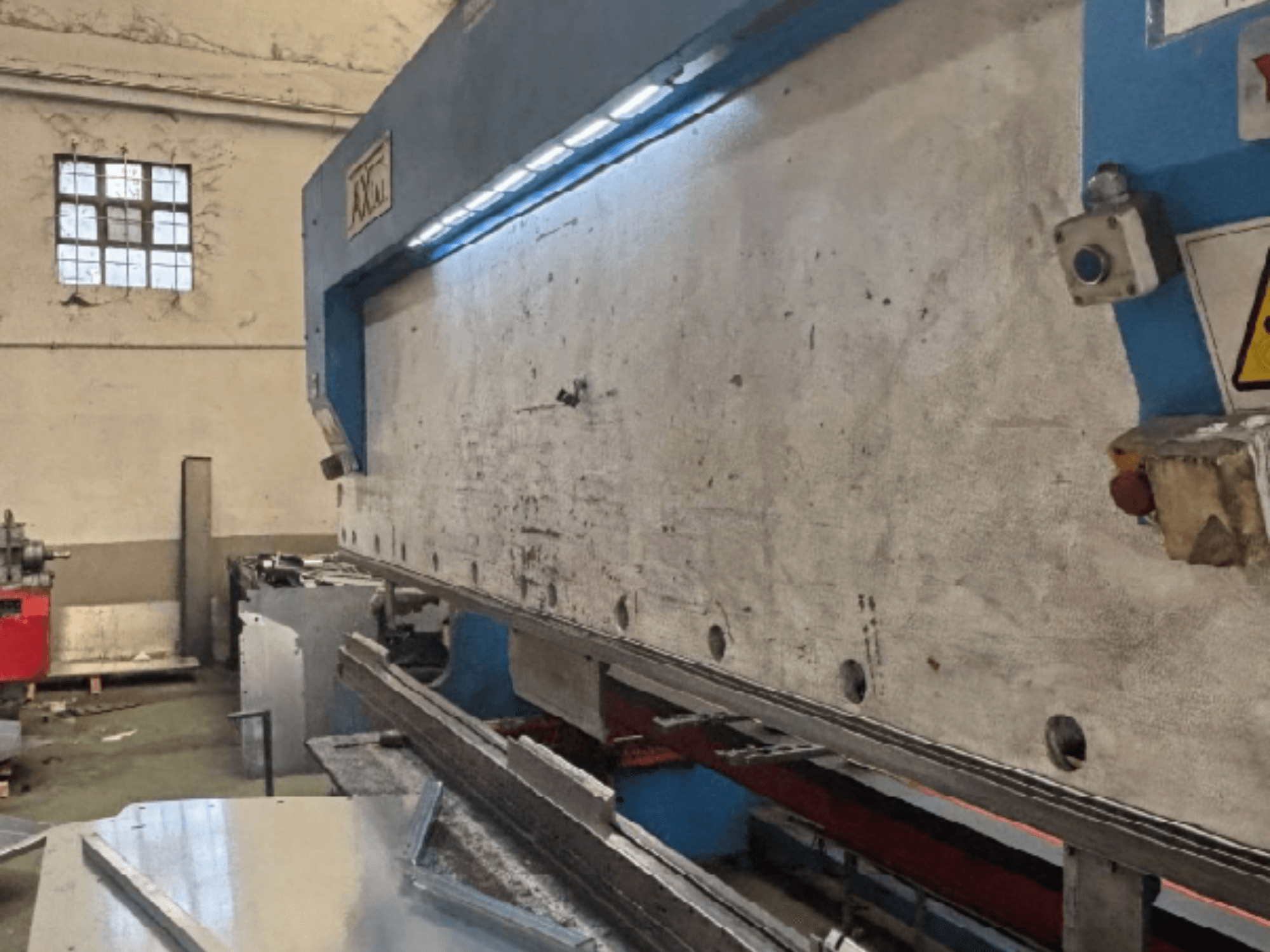

This 6-axis Axial PHS-W-124 was manufactured in 1999. It features a bending force of 120 tons and a bending length of 4 meters, with a stroke of 200 mm. The machine is equipped with a Wila tooling system and a Step Automation Rock 17+ control with a 3D editor. If you are looking to get high-quality bending capabilities, consider the Axial PHS-W-124 pallet handling system we have for sale. Contact us for further details.
Overview
- brand: Axial
- year: 1999
- MODEL: PHS-W-124
- application type: Other Automation Equipment
- Location: Spain
- machine type: Pallet Handling System
Technical Information - Axial PHS-W-124
Movement
- Number of Axes: 6
Additional Information
Bending force: 120 ton
Bending length: 4,000 mm
Stroke: 200 mm
Y-axis approach speed: 97 mm/s
Y-axis return speed: 107 mm/s
Bending speed: 8 mm/s
Tooling/clamping system: Wila
Backgauge axes: 4
Control: Step Automation Rock 17+ with 3D editor
Safety: Category 4 DSP laser safety module (adjusted and calibrated to current regulations)
Additional equipment
Two additional manual backgauge stops
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
