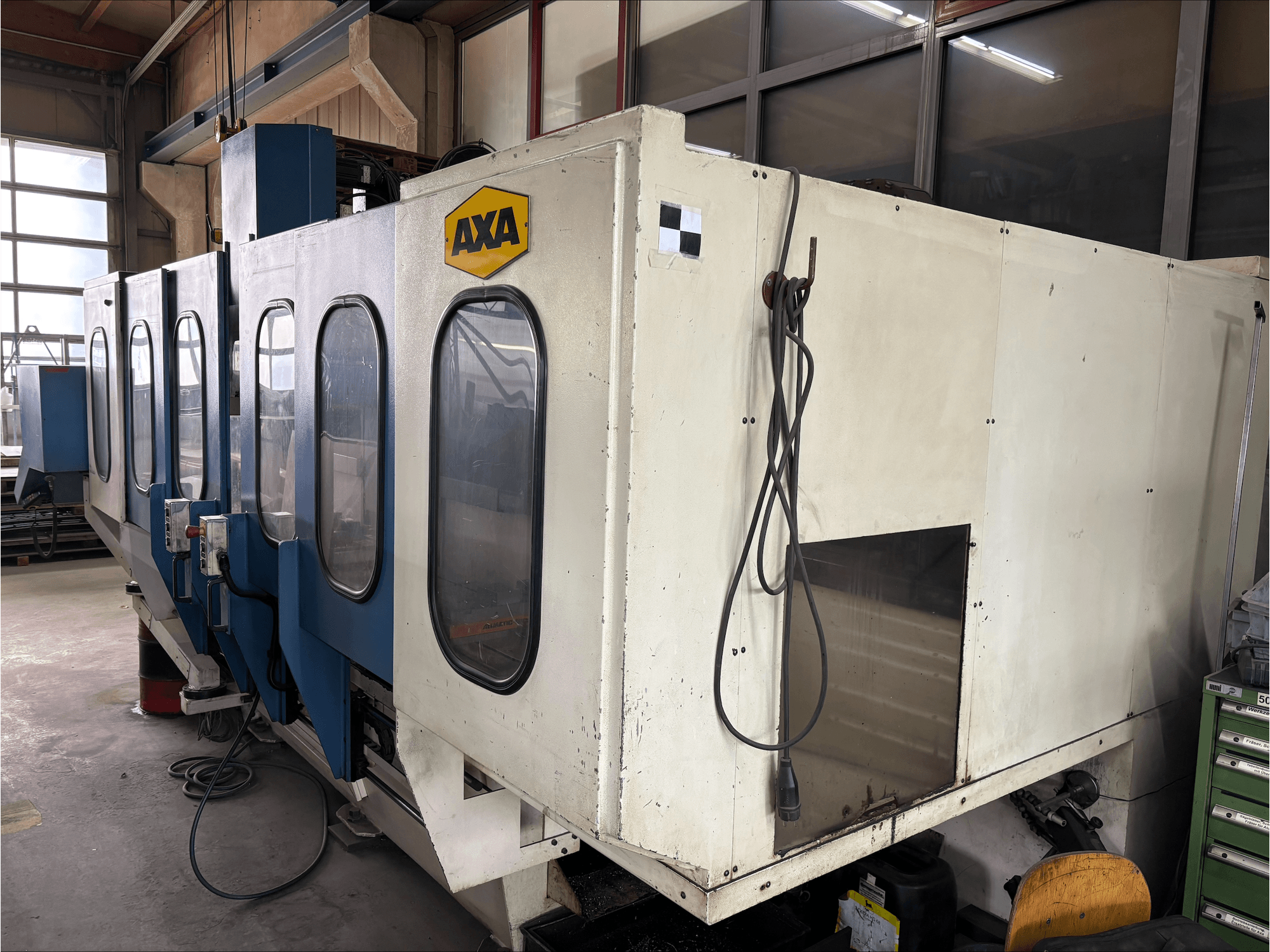

This 3-axis AXA VSC-1-M/C was manufactured in 1997. It features an X-axis travel of 2240 mm, Y-axis travel of 420 mm, and Z-axis travel of 480 mm. The machine is equipped with a Heidenhain CNC TNC 407 control system and has a tool changer capacity of 22 tools. If you are looking to get high-quality machining capabilities, consider the AXA VSC-1-M/C vertical machining centre we have for sale. Contact us for further details.
Overview
- brand: AXA
- year: 1997
- MODEL: VSC-1-M/C
- production hours: 8262
- application type: Milling
- Location: Germany
- machine type: Vertical Machining Centre
- control unit brand: HEIDENHAIN
Technical Information - AXA VSC-1-M/C
Control Unit
- Control Brand: HEIDENHAIN
- Control Model: TNC 407
Movement
- Number of Axes: 3
- X-axis Travel: 2240 mm
- Y-axis Travel: 420 mm
- Z-axis Travel: 480 mm
Technical Specification
- Number of Tools: 22
- Spindle Speed: 4700 RPM
- Taper Size: SK 40
Additional Information
Power supply: 3x400V / 230V / N / PE
Frequency: 50 Hz
Connected load: 28 kVA
Control voltage: 24 V
Max. fuse protection: 50 A
Control system: Heidenhain CNC TNC 407
Tool holder: SK40 DIN 69871 A
Tool changer capacity: 22 tools
X-axis travel: 2240 mm (2 × 700 mm)
Y-axis travel: 420 mm
Z-axis travel: 480 mm
Spindle speed range: 40 – 4700 rpm
Axis drives: Bosch
Main spindle motor: Bosch
Tool changer drive: Bosch
Magazine drive: Bosch
Linear guide system: Deutsche Star
Central lubrication system: Vogel Mini MFI
Hydraulic unit: Hydac
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
