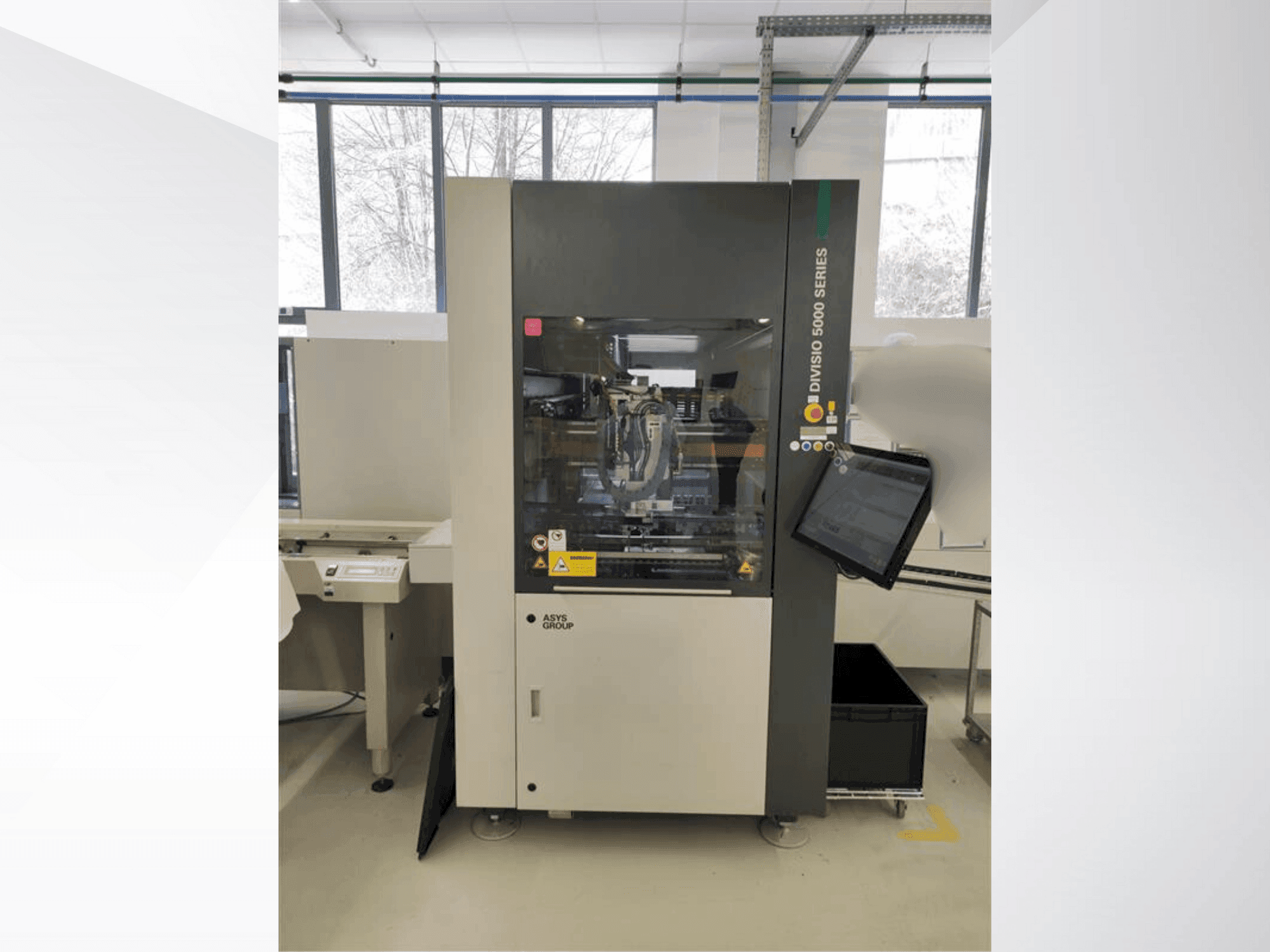

ASYS - Divisio 5100CZ-OTH-ASY-2023-00001

Additional equipment

• Automatic Router-Bit Change with Ejection Function
• Vacuum Monitoring of the Suction Flow
• Automatic Grab Finger Changer
• Dust Cleaner Router, 3x400V; 4.0 kW
• Camera and Software Modules: Teach Function, Bad Mark Recognition, Interface Good / Bad Sorting
• ASYCAM CAD Data Converter
• Conveyor System for Carrier Transport
• Outlet Conveyor, Flatbelt, 1000 mm
• PARIO 500 Basis Left, Straight: PARIO 500 Basis Right, Straight: Pario 500 Tray Adaption
• PARIO 500 Basis Left, Straight PARIO 500 Basis Right, Straight Pario 500 Tray Adaption

Machine Benefits

Qualitative Machine Benefits

• Panel thickness: 0. 5 to 5. 0 mm
• Max. Panel weight: 1. 5 kg
• Max. Pcb weight: 1. 5 kg
• Component height, spindle-side: 8 mm; partial 18 mm (other height on request)
• Component height, gripper-side: 40 mm
• Trays on lane 2: 600 x 400 mm
• Trays on lane 2: 600 x 400 mm
• Linear motors for highest dynamics and accuracy
• Electric width adjustment of the 3 segments conveyor belt
• Camera system including fiducial recognition

Technical Machine Benefits

• Noise level: < 75 db(a)
• Interface: smema, hermes, siemens
• Transfer direction: left to right or right to left
• Speed: x,y = 2000 mm/s, z = 1500 mm/s
• Acceleration: x,y = 20 m/s², z = 15 m/s²
• Positioning: ±0. 02 mm (20°c ±1°c)
• Repeatability: ±0. 005 mm (20°c ±1°c)
• Cut-accuracy: ±0. 08 mm (20°c ±1°c)
• Panel length: 70 to 460 mm
• Panel width: 50 to 460 mm

Extra Information

Machine still under power. Operating Resources Management Consumables Management Autonomous Time Calculator ADF Universal Grab Tool for Servo Grip
