Arburg - Allrounder 470 S 1300-350 (2004)DE-INJ-ARB-2004-00004
Do you have further questions? Contact us.
Borja Garcia
+34 679 019 350
b.garcia@gindumac.com
- GINDUMAC
- Products
- Plastics Processing Machinery
- ➤ Used Arburg Allrounder 470 S 1300-350 (2004) For Sale

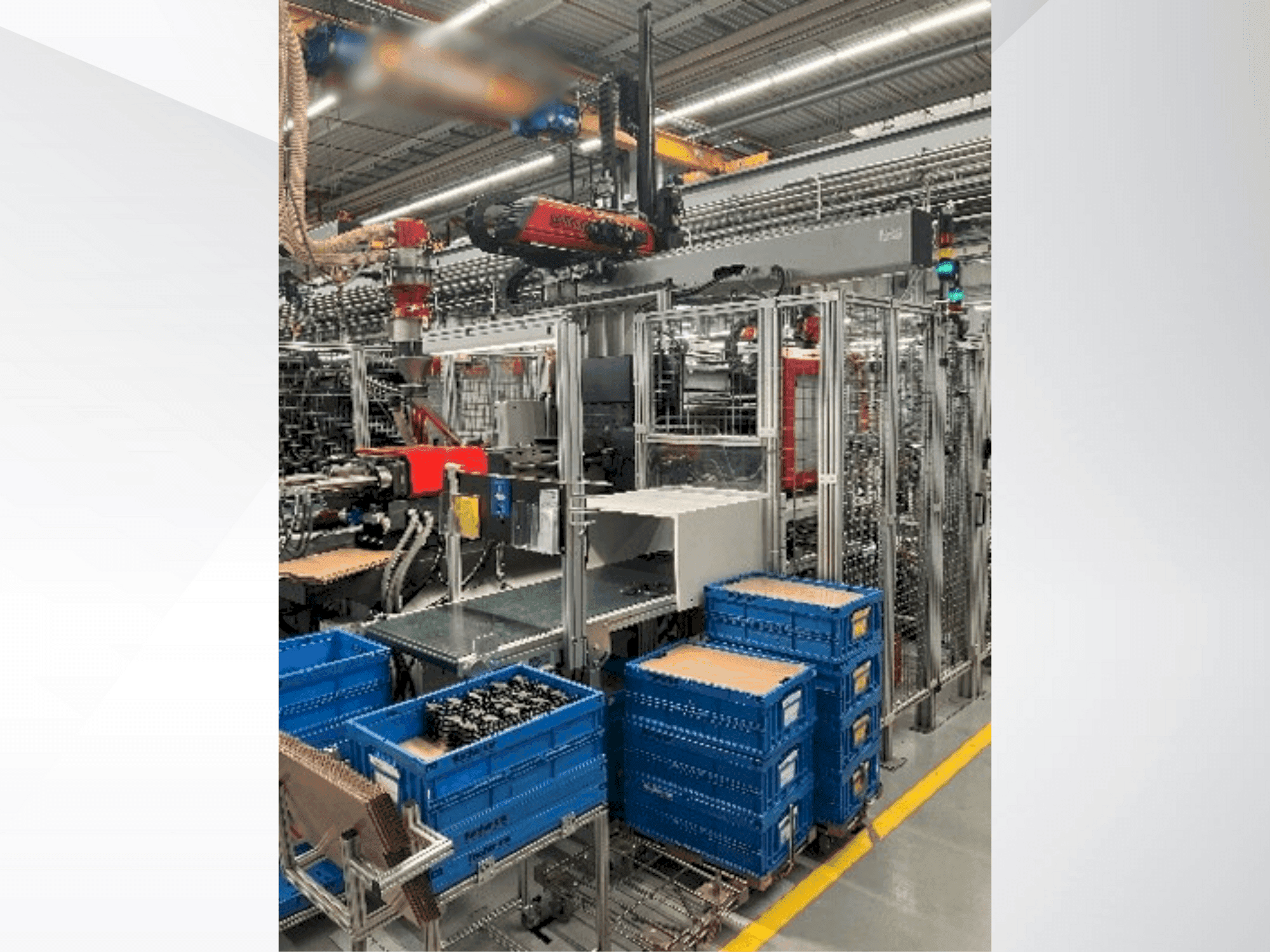

This Arburg Allrounder 470 S 1300-350 was manufactured in 2004. It is a hydraulic injection moulding machine, ideal for precision plastic processing. Consider the opportunity to buy this Arburg Allrounder 470 S 1300-350 hydraulic injection moulding machine. Contact us for more information.
Overview
- brand: Arburg
- year: 2004
- MODEL: Allrounder 470 S 1300-350 (2004)
- application type: Injection Moulding
- Location: Germany
- machine type: Hydraulic Injection Moulding Machine
- availability: 01 07 2025
Technical Information - Arburg Allrounder 470 S 1300-350 (2004)
General Data
- Measurements width: 2600 mm
- Measurements depth: 5100 mm
Injection Unit
- Screw diameter: 35 mm
- Stroke volume: 139 ccm CM³
- Injection pressure: 2500 bar
Clamping unit
- Clamping force: 130 kN
- Distance between bars: 470 mm
Additional Equipment
- - Robot: Wittmann W621-1618
- - 2x Temperature Control Units: HB-Therm Series 4
- - 1x Temperature Control Unit: HB-Therm Thermo 5
- - Plus Peripherals
Additional Information
- Technical Machine Benefits:
- - Tonnage: 130 tons
- - Number of hydraulic core pulls (moving side): 1
- - Valve gate: 1 / hk control points: 6 (3)
- - Center ring diameter: 125 mm
- - Coupling diameter: 32 mm
- - Maximum opening: 579 mm / maximum plate distance: 852 mm / maximum ejector length: 175 mm
- - Language options: german, english
- - Robot robot vacuum circles nr. : 8
- - Robot gripper circles nr. : 2
- - Travel paths: x-550, y-1200, and z-1500 mm.
- - Machine still under power
Machine Benefits
Extra information
*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
