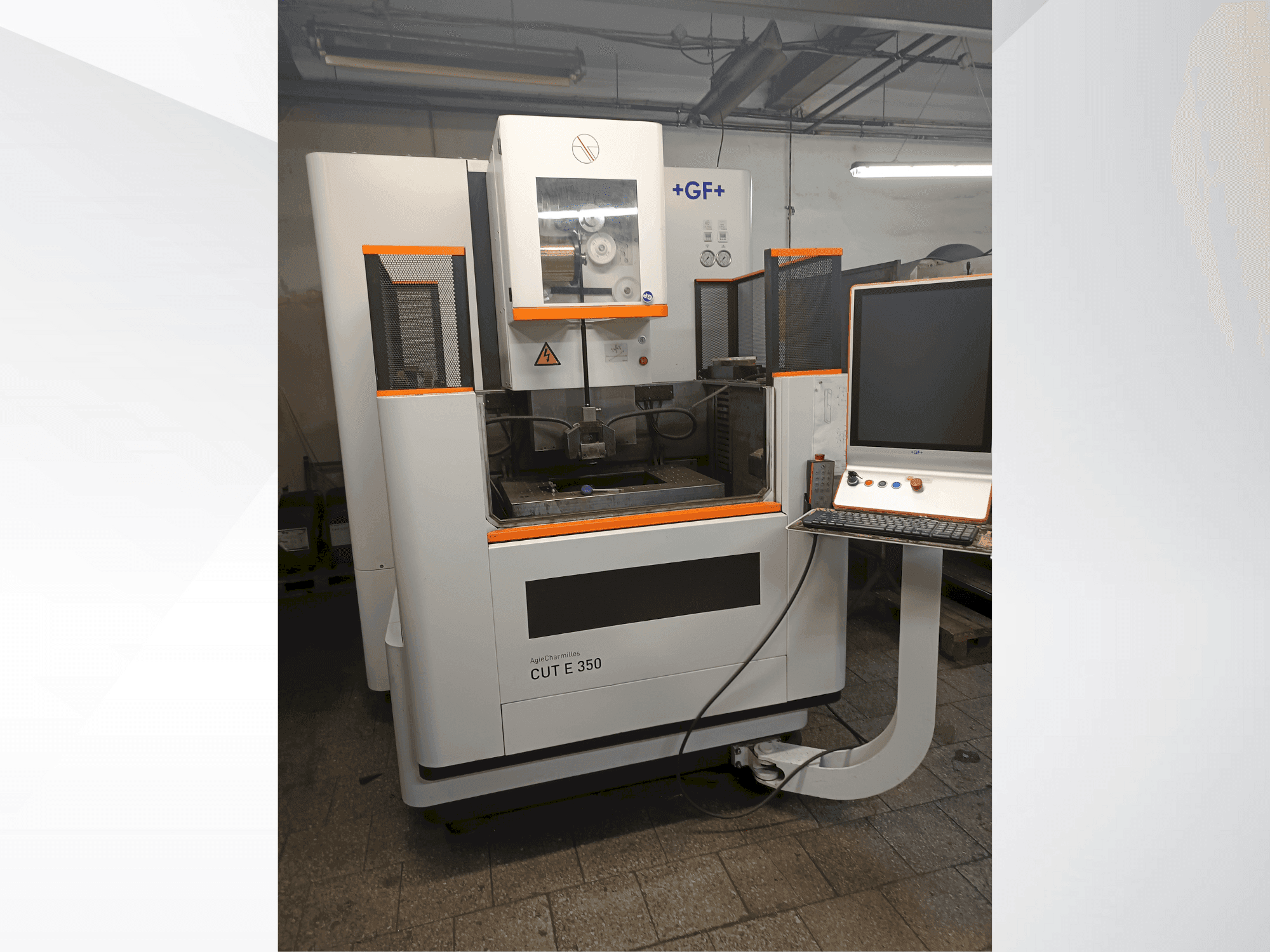

Front view of +GF+ Agie Charmilles CUT E 350 machine
Front view of +GF+ Agie Charmilles CUT E 350 machine

+GF+ - Agie Charmilles CUT E 350PL-EDM-GFX-2020-00001

£ 68,400
gindumac price
(Ex works)
get an official quote
Visit the machine
make a counteroffer
Download PDF

Do you have further questions? Contact us.

sales contact

Borja Garcia

+34 679 019 350

b.garcia@gindumac.com

whatsapp
Click to chat on WhatsApp
Show in original language

This 5-axis +GF+ Agie Charmilles CUT E 350 was manufactured in 2020, featuring a work area of 820 × 680 × 250 mm and a maximum workpiece weight of 400 kg. It supports a cutting speed of 0 – 3 m/min and includes an Integrated Collision Protection System. If you are looking to get high quality wire EDM capabilities consider the +GF+ Agie Charmilles CUT E 350 machine we have for sale. Contact us for more information.

Overview

  • brand: +GF+
  • year: 2020
  • MODEL: Agie Charmilles CUT E 350
  • application type: EDM
  • Location: Poland
  • machine type: Wire EDM Machine
  • availability: Immediately

Technical Information - +GF+ Agie Charmilles CUT E 350

Movement

  • X-AXIS Movement: 350 MM
  • Y-AXIS Movement: 250 MM
  • Z-AXIS Movement: 250 MM

Additional Information

    Machine Benefits

    • Technical Machine Benefits:
      • - Maximum workpiece dimensions (l×w×h): 820 × 680 × 250 mm / maximum workpiece weight: 400 kg
      • - Travel (u, v): ±45 mm
      • - Max. Wire inclination angle: ±30° / 50 mm
      • - Measurement resolution (x, y, u, v, z): 0. 1 µm
      • - Cutting speed (xyz): 0 – 3 m/min
      • - Integrated collision protection system (icp): yes (x, y, z)
      • - Dielectric fluid level (min. / max. ): 0 / 280 mm / required pressure: 6. 5 – 8 bar / minimum flow rate: 150 l/min

*There may be differences between the data shown and the actual values, this should be confirmed by the sales representative.
